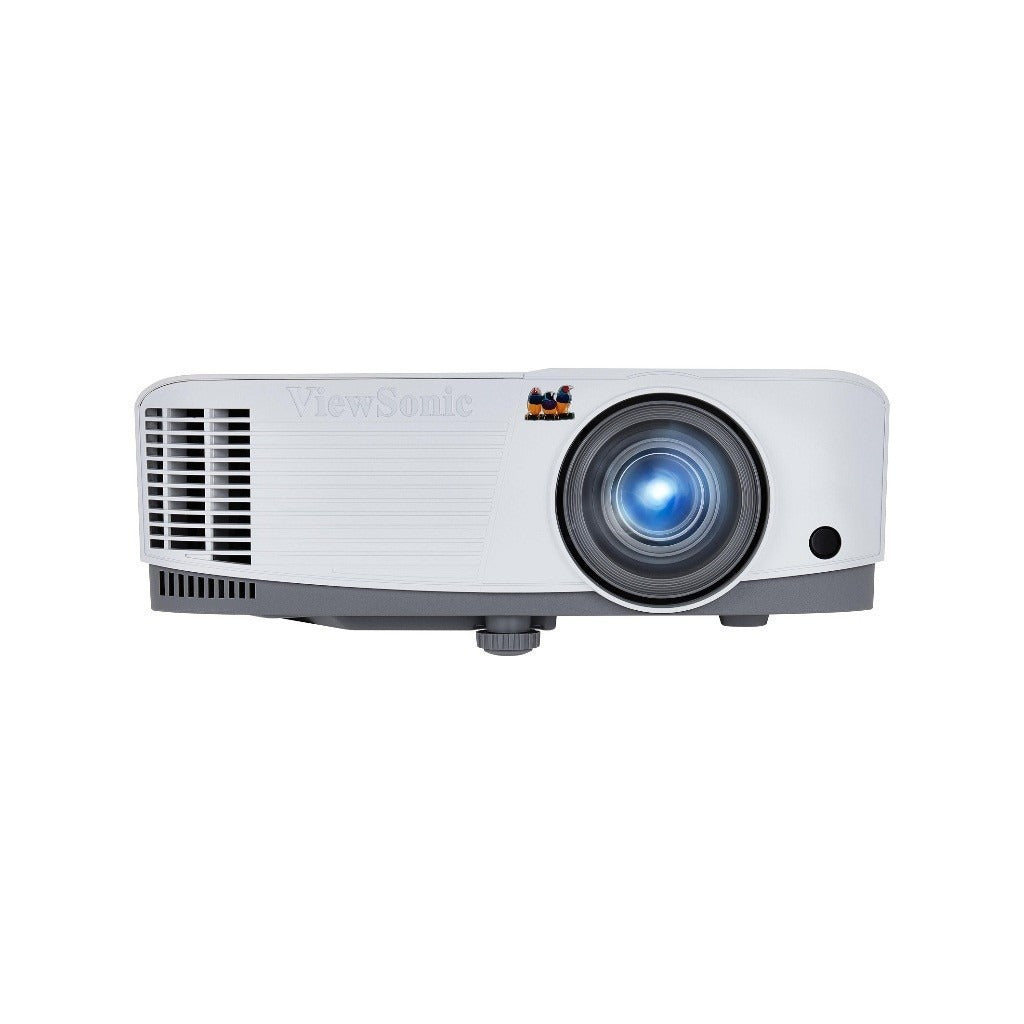

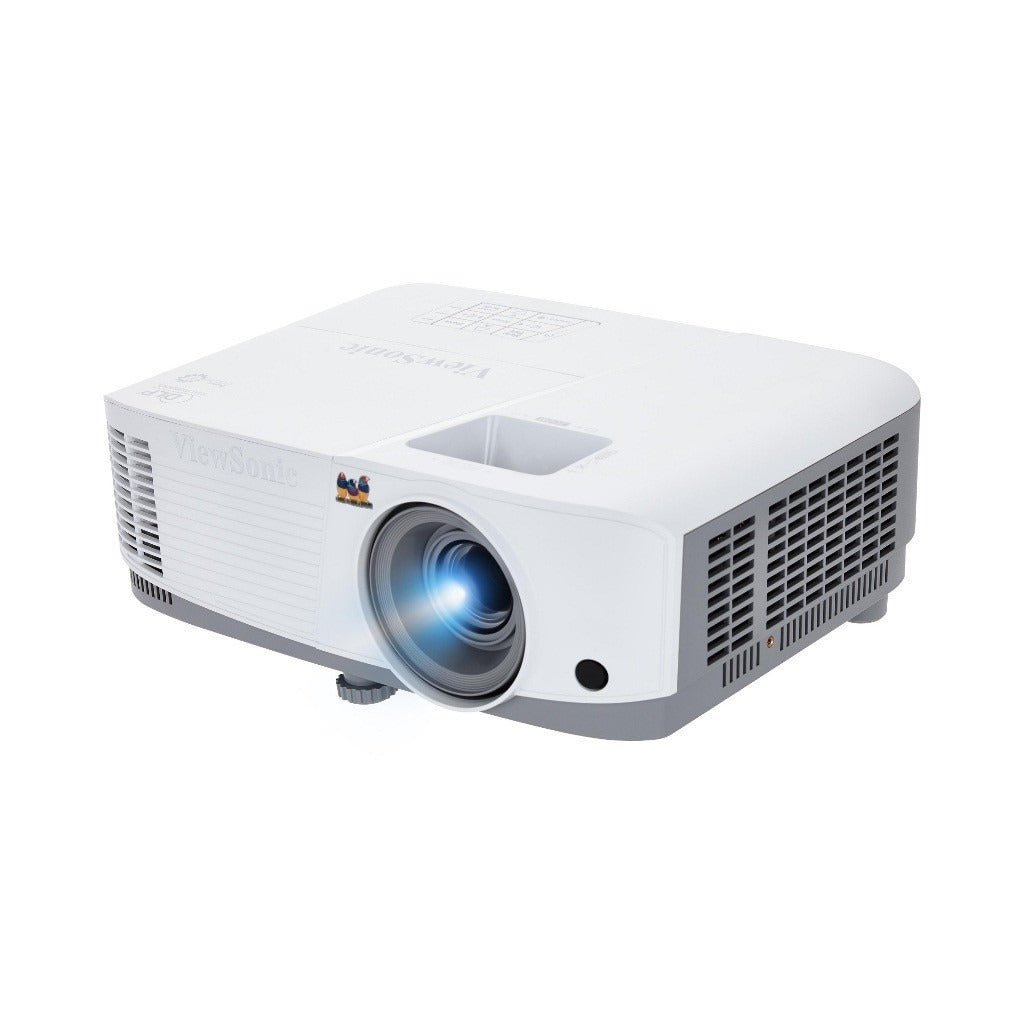

Viewsonic SP7 4800 Ansi Lumens WXGA HDMI Projector

XGA DLP Projector – 4800 ANSI Lumens

️

Display Specifications

Projection System:

0.65" WXGA DLP

Native Resolution:

1280 x 800 (WXGA)

DLP Chip Type:

DC3

Display Colors:

1.07 Billion Colors

Brightness:

4800 ANSI Lumens

Contrast Ratio (SuperEco mode):

22,000:1

Lamp Wattage:

200W

Light Source Type:

Lamp

Lamp Life (Normal / SuperEco):

5000 / 15000 hours

Aspect Ratio:

16:10 native

Optical & Imaging Features

Lens:

F = 2.56–2.68, f = 22–24.1 mm

Optical Zoom:

1.1x

Projection Offset:

100% ± 5%

Throw Ratio:

1.55 ~ 1.70

Throw Distance:

1.0 – 10.98 meters (100" @ 3.34m)

Image Size Range:

30" – 300"

Keystone Correction:

±40° Vertical

Audible Noise (Eco Mode):

27 dB

️

Compatibility & Supported Formats

Resolution Support:

VGA (640x480) to Full HD (1920x1080)

HDTV Compatibility:

480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Compatibility:

NTSC, PAL, SECAM

Horizontal Frequency:

15K ~ 102KHz

Vertical Scan Rate:

23 ~ 120Hz

Input & Output Interfaces

Inputs

Computer In (D-Sub, shared with Component):

2

HDMI:

1 (Rear)

Composite Video:

1

Audio-In (3.5mm):

1

Outputs

Monitor Out (VGA):

1

Audio Out (3.5mm):

1

Built-in Speaker:

2W

Control Ports

RS-232:

1

USB Mini-B (Service):

1

️

Power & Environmental

Power Supply:

100–240V ±10%, 50/60Hz AC

Power Consumption:

Normal: 260W

Standby: <0.5W

Operating Temperature:

0°C ~ 40°C

Physical Specifications

Net Weight:

2.2 kg

Dimensions (W x D x H):

294 x 218 x 110 mm (with adjustment foot)

Carton Type:

Brown

Language Support

Includes but not limited to:

English, French, Spanish, German, Italian, Russian, Japanese, Korean, Chinese (Traditional & Simplified), Portuguese, Arabic, Turkish, Dutch, Thai, Polish, Czech, Finnish, Indonesian, Vietnamese, Indian

Standard Accessories

Power Cord:

1

VGA Cable:

1

Remote Control:

1

Quick Start Guide (QSG):

1

CD:

Not included

Optional Accessories

Air Filter:

RSPL
